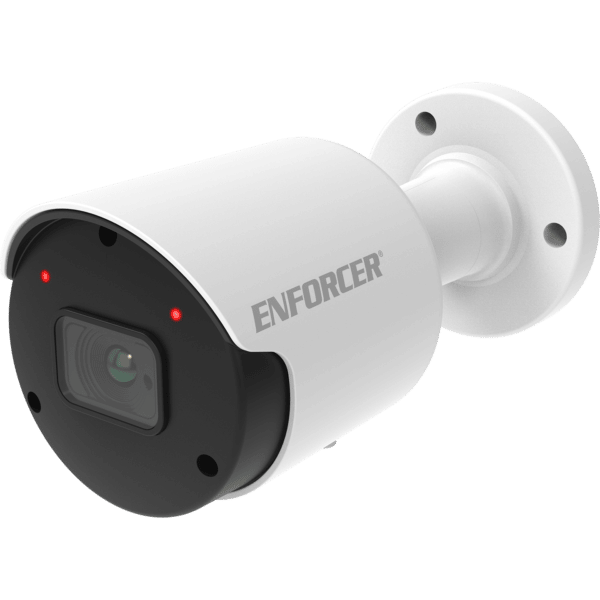

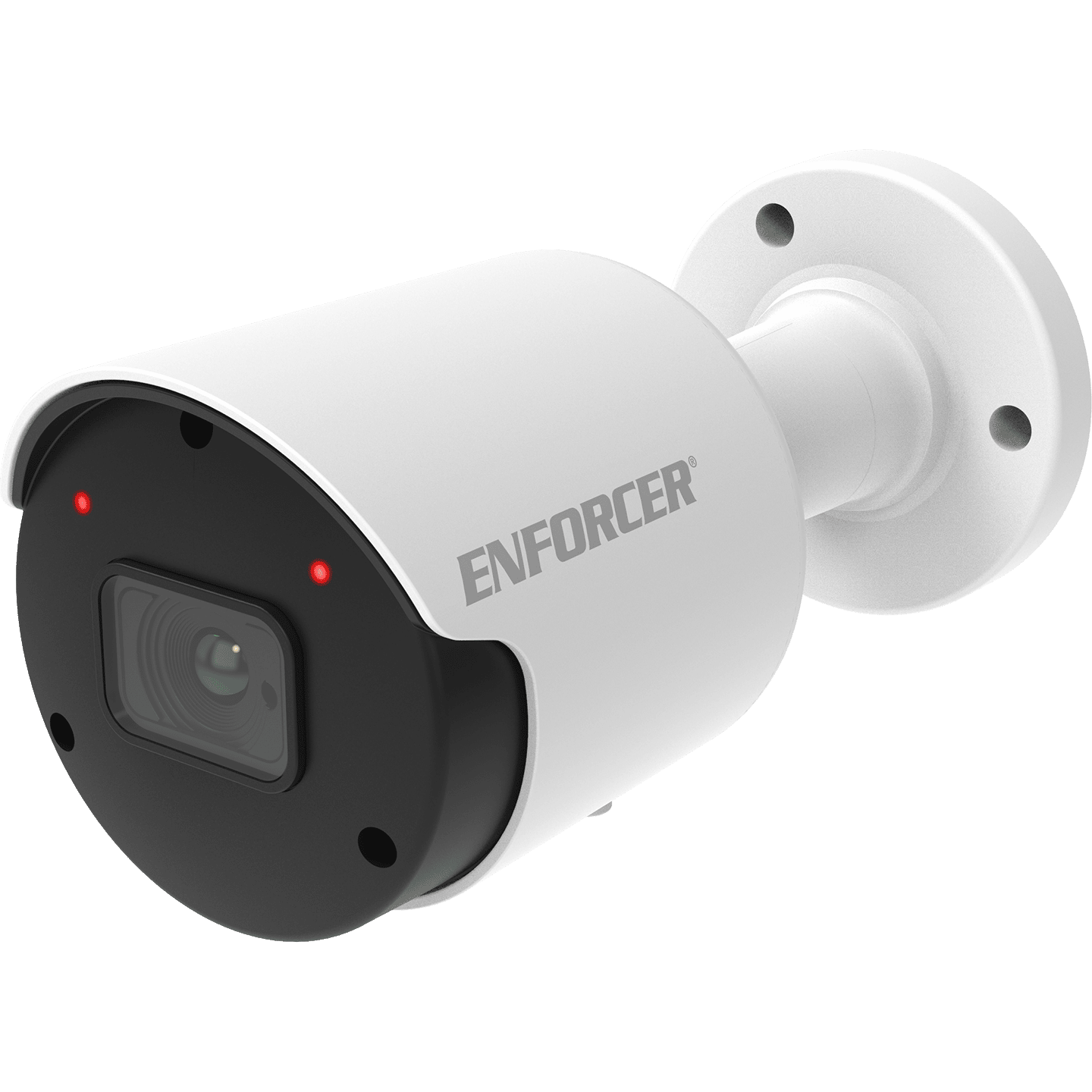

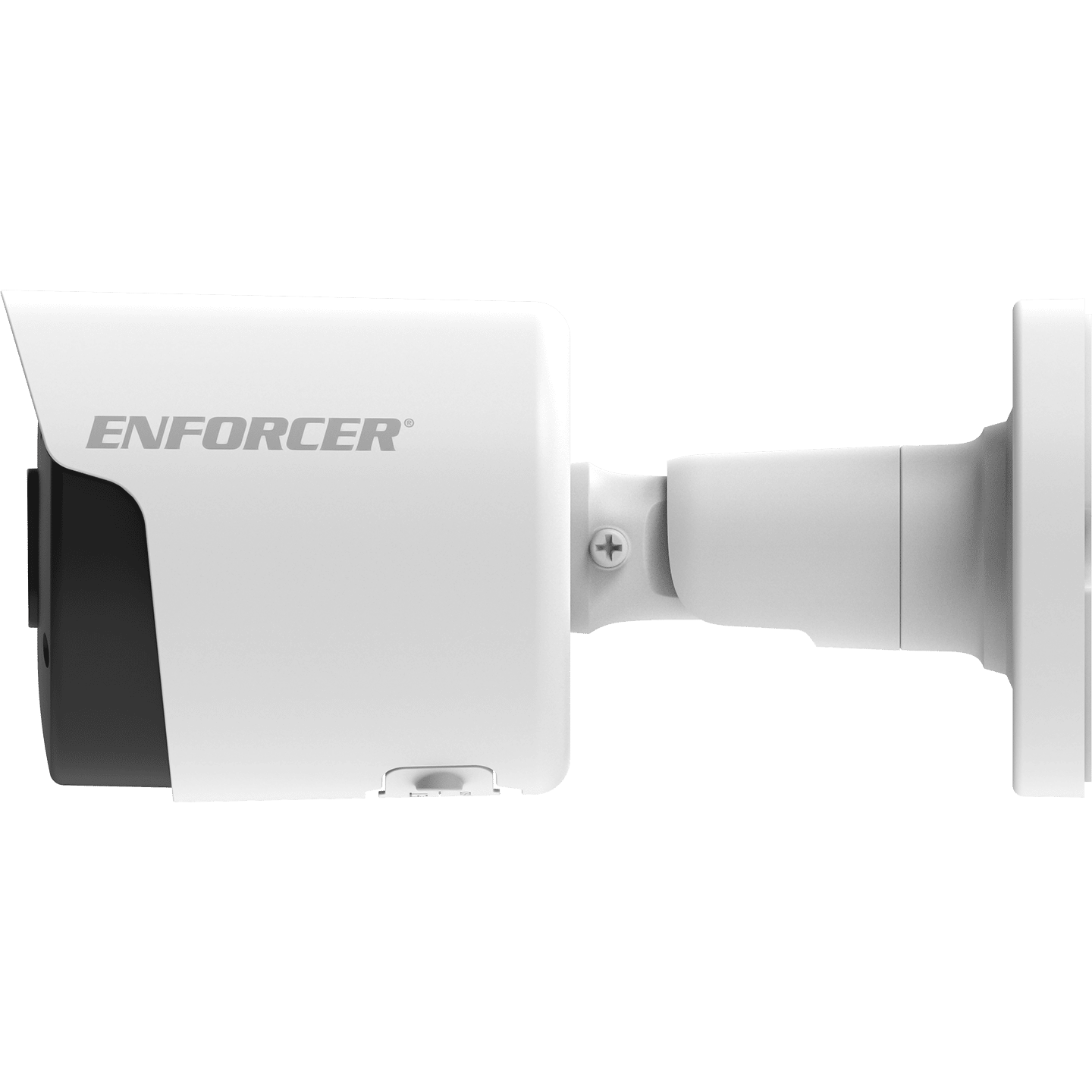

IP Fixed Bullet Camera
IP Fixed Bullet Camera - Image 2
IP Fixed Bullet Camera - Image 3
IP Fixed Bullet Camera - Image 4
IP Fixed Bullet Camera - Image 5

EV-N1506-2W4Q

IP Fixed Bullet Camera

  • product_icon
  • product_icon
  • product_icon
  • product_icon
  • 1/2.7″ 5MP SMARTSENS CMOS
  • H.265/H.264, Tri-stream IP Camera
  • 12VDC, PoE 802.3af
  • True Day & Night function with ICR mechanism
  • IR Range up to 98′ (30m)
  • Max. 20FPS/5MP, 1440p (2592×1944)
  • Weather-resistant (IP66)
  • D-WDR
  • 3DNR
  • ONVIF Profile S, Profile G

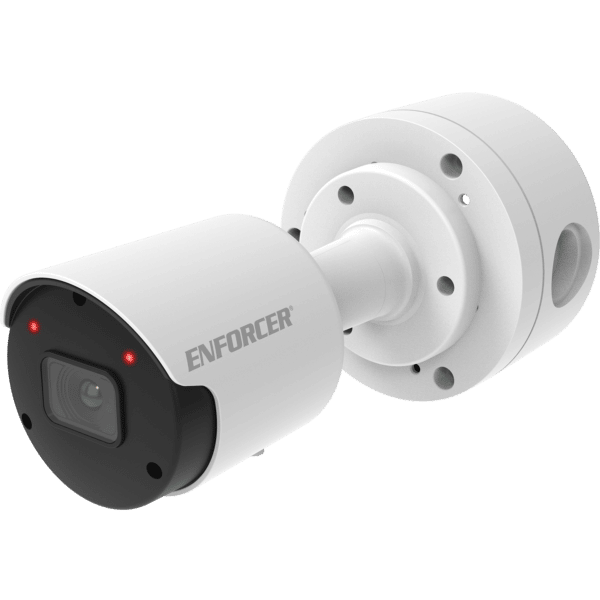

  • Junction box is not included with the product
SL Vision
The SL Vision app provides you with a seamless and easy-to-use solution for all your video surveillance needs. With the SL Vision app and your ENFORCER® NVR, you can effortlessly connect to your NVR through the app, view live feeds from your cameras, access recorded footage, and save video clips or snapshots of what you have seen with just a few taps, all at your own convenience.

Experience the convenience and security of managing your NVR from your smartphone or tablet.

Available for iOS (11.0 and above) and Android (5.0 and above).
SL VMS
One portal to monitor and manage your CCTV System.
Click here to download SL VMS for Windows

Type Fixed Bullet Camera
Sensor 1/2.7″ 5MP SMARTSENS CMOS
Video encoding H.265/H.264
Megapixels 5MP
Resolution 1440p, 2592×1944
3DNR Yes
Scanning system Progressive 1080p
# of IR LEDs 2pcs (850nm)
Lens 2.8mm
Viewing angle 131°
Minimum illumination 0.05 Lux
F Stop 1.2
Gamma correction Auto
Gain control Auto
White balance Auto
Operating voltage 12VDC, PoE 802.3af
Current Draw – IR Off 80mA max.
IP Rating Weatherproof IP66
Operating temperature -22°~131° F (-30°~55° C)
Dimensions ø2-13/16″x5-15/16″ (ø71×151 mm)
Weight 13.4-oz (370g)
Product Information Sheet (PI) (pdf, 187KB)
Download
Manual (pdf, 167KB)
Download
Web Administration Manual (pdf, 2505KB)
Download

FAQs

b

The camera case is hot.

Check that the correct power supply is in use.

b

The screen image flickers.

Change the position of the camera.

b

The screen image has poor contrast.

Adjust the monitor’s contrast knob. Change the position of the camera.

b

The screen image is dim.

Clean the lens using a soft, clean cloth. Check that the light source is adequate.

b

The screen image is distorted.

Change the position of the camera.

b

The screen is blank.

  1. Check that the camera is powered up.
  2. Check that the power supply’s polarity is correct. Check that the monitor is powered up.
  3. Check that the video cable connecting the camera to the monitor is connected properly.
