- 1/2.8″ 5MP Sony STARVIS™ CMOS
- H.265, H.264/MJPEG, Tri-stream IP Camera
- Max. 30FPS/Full HD 5MP (2592×1944)
- Remote access via web browser
- Weatherproof IP65
- Network Bandwidth Control
- Event Alarm, E-mail, FTP Function
- 30 Covert IR LEDs for discreet monitoring in the dark
- True Day & Night function with ICR mechanism
- Vandal-resistant metal front panel
- 3DNR & WDR
- 12VDC, PoE (IEEE802.3af)

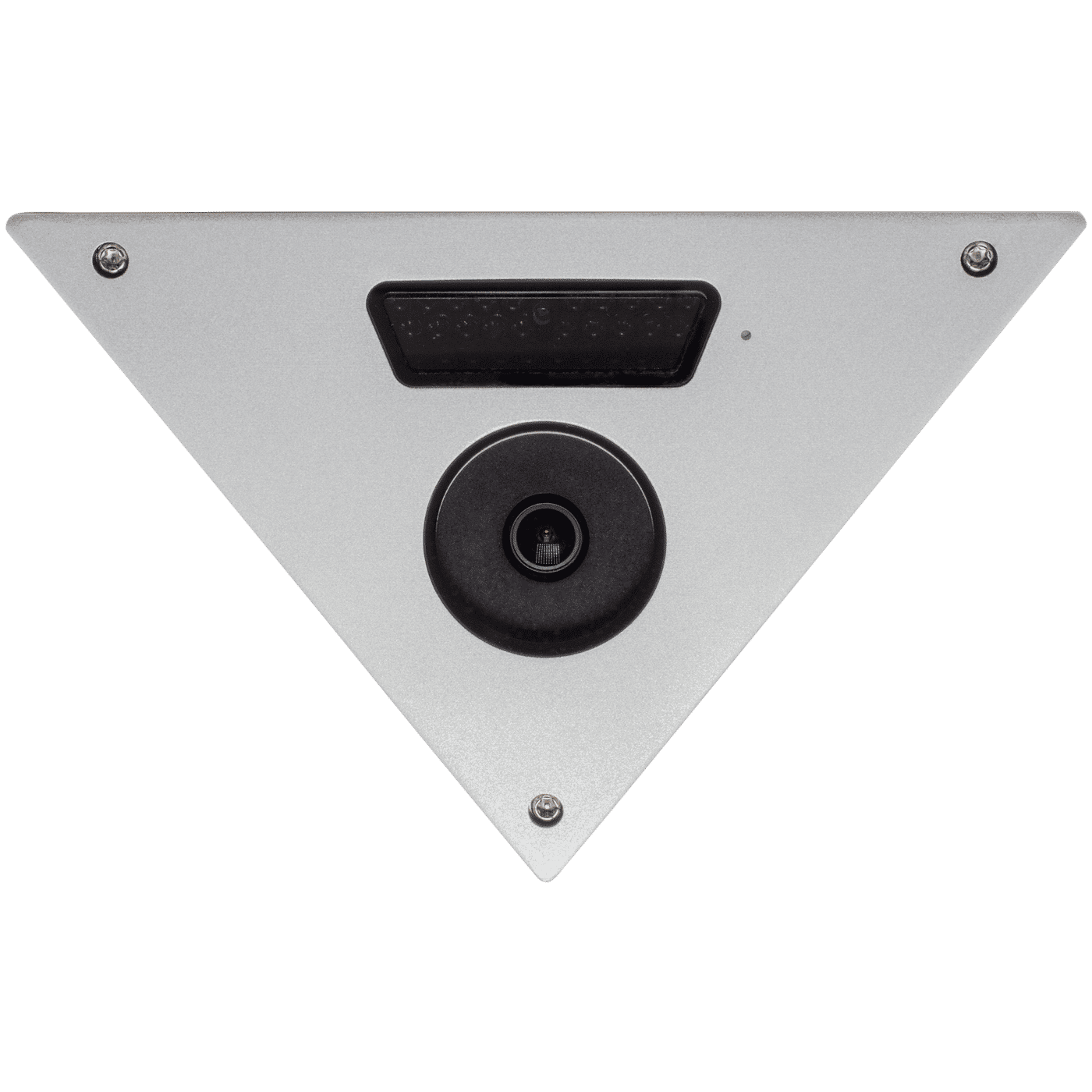

| Type | Corner-Mount Camera |
| Chip | 1/2.8″ 5MP Sony STARVIS™ CMOS |
| Horiz. Resolution | 5MP (2592×1944) |
| Viewing Angle | 126° |
| DNR | Yes (2DNR/3DNR) |
| WDR | Yes |
| Minimum Illumination | 0.01 Lux (F/1.6) |
| Video Encoding | H.265, H.264, MJPEG |
| Lens | 2.8mm |
| No. of IR LEDs | 30 (940nm) |
| S/N Ratio | 50dB |
| Operating Voltage | 12VDC, PoE (IEEE802.3af) |
| Current Draw | 140mA max. |
| Gamma Correction | 0.45 |
| Gain Control | Auto |
| White Balance | Auto |
| IP Rating | IP65 Weatherproof |
| Operating Temperature | 14°~122° F (-10°~50° C) |
| Dimensions | 7-1/2” x5-1/2”x1-11/16” (190x140x43 mm) |
| Weight | 13.75-oz (390g) |
FAQs
Check that the correct power supply is in use.
Change the position of the camera.
Adjust the monitor’s contrast knob. Change the position of the camera.
Clean the lens using a soft, clean cloth. Check that the light source is adequate.
Change the position of the camera.
- Check that the camera is powered up.
- Check that the power supply’s polarity is correct. Check that the monitor is powered up.
- Check that the video cable connecting the camera to the monitor is connected properly.
