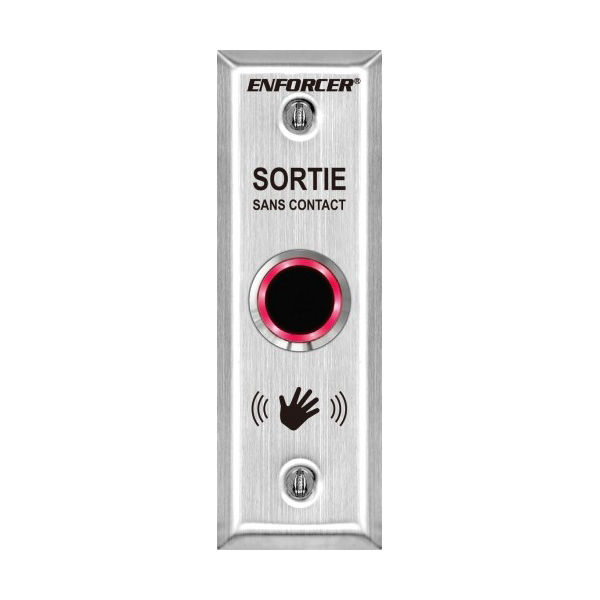

The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
| Operating temperature | 12~24 VDC |
| Current draw (max. ±10%) | Standby red (12/24 VDC): 13mA / 15mA Triggered green (12/24 VDC): 21mA / 25mA Standby green (12/24 VDC): 12mA / 14mA Triggered red (12/24 VDC): 23mA / 28mA |
| Relay type | SPDT dry contact, 1.2A@24VDC |
| Response time | 10ms |
| LED | Standby: Red* Triggered: Green* |
| Output duration | 0.5~30 s, toggle |
| Range | 2″~7″ (5~18 cm) |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level IV |
| Standby power | Level I |
| IP Rating | Weatherproof, IP65 |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 1-1/2″ x4-1/2″(39 x115 mm) |
| Weight | 2.2-oz (61g) |
*Color function reversible †When properly installed
