- ETL, Conforms to UL Std. 294
- Adjustable sensor range up to 7″ (18cm)
- Weatherproof (IP65) for outdoor use
- Stainless steel plate
- Hinged plate easily removes from box for easy wiring
- 1A Relay, adjustable trigger duration 0.8~30 seconds or toggle
- Gooseneck- or wall-mountable

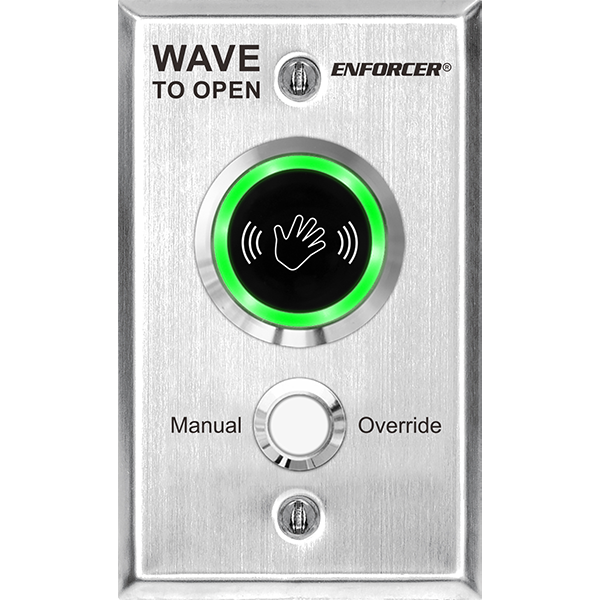

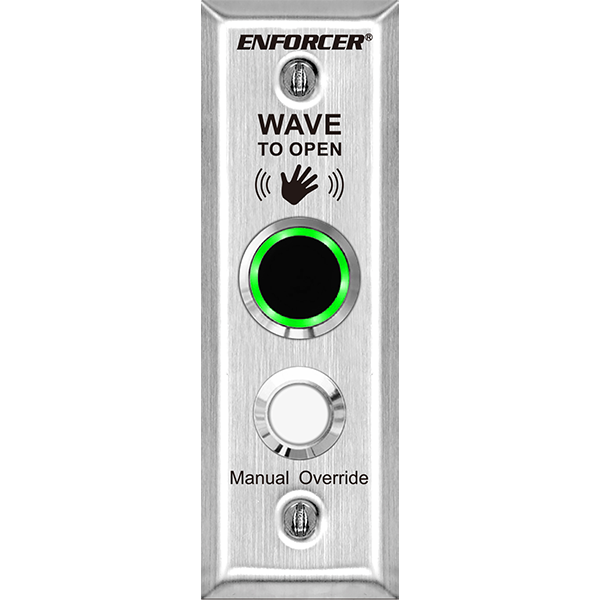

- Manual override button
- LED-illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) on sensor activation
- Includes heavy-duty steel box
| Operating voltage | 12~24 VDC |
| Current draw (max. ±10%) |
Standby Red: 18mA@12VDC / 23mA@24VDC Triggered Green: 23mA@12VDC / 29mA@24VDC Standby Green: 14mA@12VDC/18mA@24VDC Triggered Red: 28mA@12VDC/35mA@24VDC |
| Relay type | Form C dry contact (SPDT), 1.2A@24VDC |
| Response time | 10ms |
| LEDs | Standby: Red* Triggered: Green* |
| Output duration | 0.5~30 s or toggle |
| Range | 2″~7″ (5~18 cm) |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level IV |
| Standby power | Level I |
| IP Rating | Weatherproof IP65† |
| Operating Temperature | -4º~131º F (-20º~55º C) |
| Weight | 1-lb 9-oz (710g) |
| Dimensions | 4″ x 5-1/2″ x 3″ (102 x 134 x 77 mm) |
*Color function reversible †Front panel only
Product Information Sheet (PI)
Manual
FAQs
Answer:
- Ensure that no strong direct or reflected light source is reaching the sensor.
- Ensure that sensor is sheltered from direct sunlight.
