SD-9263-KSVQ

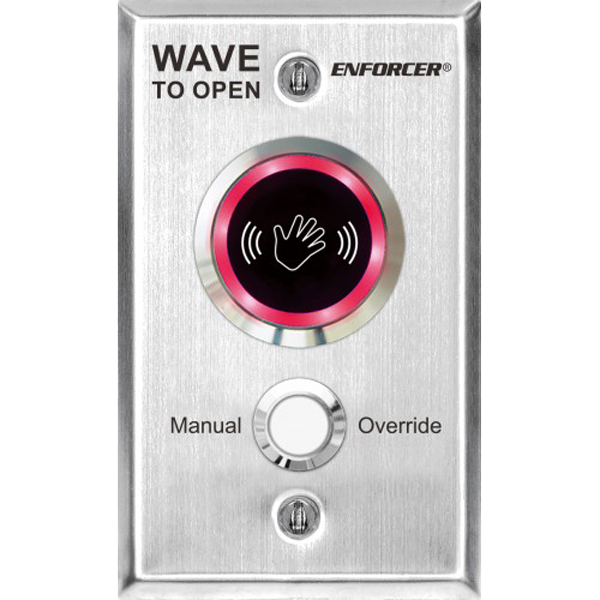

Outdoor Wave-to-Open Sensor with Manual Override

The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

  • product_icon
  • product_icon
  • product_icon

  • Conforms to UL294
  • Adjustable sensor range up to 7″ (18cm)
  • Stainless steel plate
  • Weatherproof (IP65) for outdoor use*
  • 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
  • LED illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) to show sensor activated

​*when properly installed.

Type “Wave-to-Open” Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use
Current Draw Standby – [email protected] / [email protected], Triggered – [email protected] / [email protected]
Sensing Range 2″~7″ (5~18cm)
Operating Voltage 12~24 VDC
Reaction time 10mS
LEDs – Red Standby (Colors are reversible.)
LEDs – Green Triggered (Colors are reversible.)
Relay Type Form C dry contact, [email protected]
Output Time 0.5~30 s, toggle
Operating Temperature -4°~131° F (-20°~55° C)
Dimensions 4-1/2″ x 2-3/4″ x 1-1/2″ (115 x 70 x 39 mm)
Weight 125g
Enclosure Waterproof IP65

Product Information Sheet (PI)

Manual

Advertisement

Frequently Asked Questions (FAQ)

Sensor is triggering unintentionally.
  • ENFORCER Outdoor Wave-to-Open Sensors can be used either indoors or outdoors. However, due to infrared technology limitations, it is recommended that a hood or shield be used when installing outdoors to shield the sensor from direct light (sunlight, reflections from shiny objects, etc.). Direct light may cause the sensor to trigger unintentionally.
